A Holder for a Mariners Binoculars (1)

The 'G' cramps have been removed which held the wood while the glue was drying and I am now ready to fair and level the backing plate with the smoothing plane. In all I glued together four scraps of wood to make a piece big enough to take the binoculars. ( Old boat builders like me never throw out wood ends if at all possible as you never quite know when they might come in useful)

This is a job I have meaning to do for ages. There are times when you are sailing where you are continuosly picking up and putting down binoculars, the wind is fresh, the boat is heeling and you want a safe and handy place to put the binoculars. I intend to screw this holder just inside the companion way hatch, a very handy place and close to the helmsman / woman.

The teak wood block has been squared up with a small fine toothed hand saw and the job of planing and sanding has begun.
.
The sanding is nearly complete and you can see more clearly the detail of the wood grain.
.
Measuring and aligning the brass rod which will be used to hold the binoculars in place.
.
I have bent the brass rod in the vice and are about to drill the holes for the rod ends. Quarter inch brass rod is no match for a 90 kg man who has just eaten a good lunch.
.

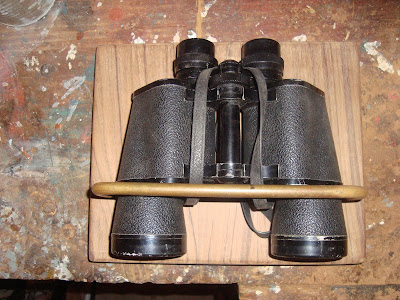

Checking and fitting the clearances around the binoculars. The wooden backing plate is wedge shaped so that when it is fitted vertically to the yachts rear bulkhead the binoculars are leaning slightly backwards which help to keep them in place.
.

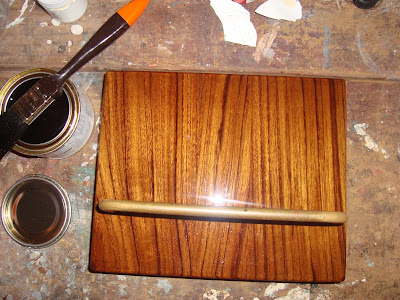

A first coat of varnish is applied which brings out the beautiful wood grain. I will give it several more coats of varnish before screwing the whole setup firmly in place close to the skippers steering position on the good ship Mariner.
.
There are a number of nice little jobs that need doing on the boat. It is always a pleasant exercise problem solving, designing and executing some sort of solution.
.
